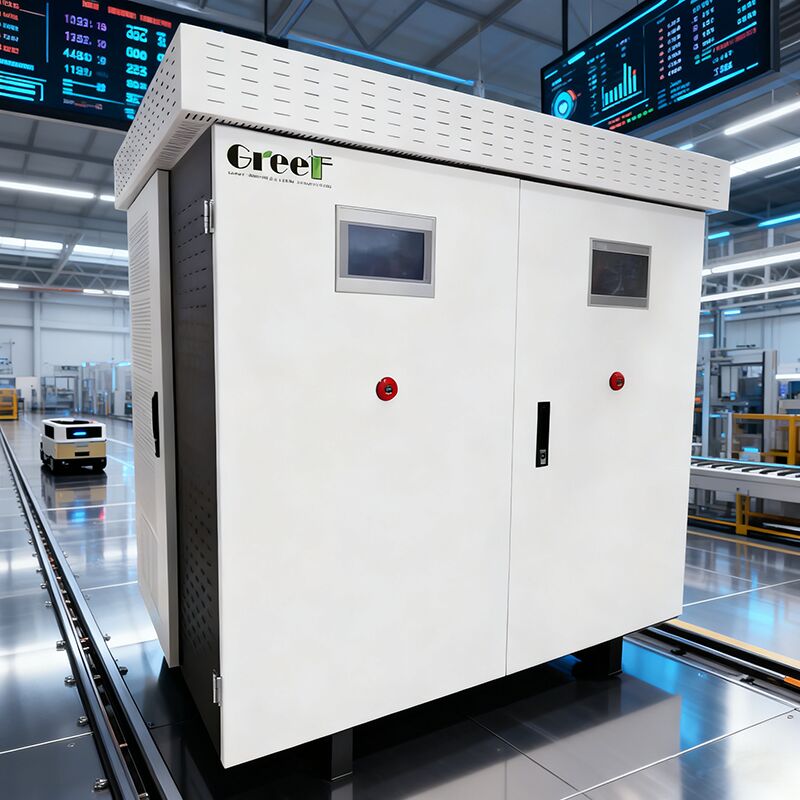

Name: On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

घर > उत्पादों > ग्रिड नियंत्रक पर >

On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation

350-450Vdc Battery Voltage Range On Grid Controller

LCD SMART Touch Screen Grid Tied Controller

100kW Rated Power Energy Management Controller

ब्रांड नाम:

Greef

प्रमाणन:

Model Number:

AC PCS

हमसे संपर्क करें

उद्धरण मांगें

On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation

उत्पाद का विवरण

रेटेड चार्ज और डिस्चार्ज करंट(ए):

144

सामग्री प्रदर्शित करें:

जेनरेटर स्पीड (आरपीएम), इनपुट वोल्टेज (वीडीसी), इनपुट करंट (वैक), आउटपुट पावर (किलोवाट), ग्रिड वोल्ट

एसी वोटिंग वर्किंग रेंज (वैक):

240 ~ 550

बैटरी वोल्टेज रेंज (वीडीसी):

३५० - ४५०

इष्टतम जनरेटर रेटेड वोल्टेज (वैक):

450

रेटेड ग्रिड वोल्टेज (वी):

400

प्रदर्शन:

एलसीडी स्मार्ट टच स्क्रीन

रेटेड पावर (kW):

100

भुगतान और शिपिंग शर्तें

Minimum Order Quantity

1Set

मूल्य

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन, मनीग्राम, एल/सी

Supply Ability

संबंधित उत्पाद

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

सबसे अच्छी कीमत पाएं

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

सबसे अच्छी कीमत पाएं

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

सबसे अच्छी कीमत पाएं

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

GREEF ENERGY Multi-Functional Power Converter

Advanced power conversion system with 350-450 VDC lithium-ion battery compatibility and intuitive touch screen display for smart home automation and industrial control applications.

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple power management functions into a single, efficient device. This comprehensive system supports AC-to-DC rectification for Permanent Magnet Generators (PMGs), battery charging capabilities, and DC-to-AC inversion for reliable power conversion.

Key Features

Integrated energy management system for optimized power distribution
Dual LCD touchscreen interface for intuitive monitoring and control
Advanced voltage and frequency regulation for PMSG systems
Grid-tied operation capability with synchronization functionality
Configurable for various operational modes and applications

Technical Specifications

Generator AC Input

Rated Power	100 kW
Voltage Range	240-550 VAC
Optimal Voltage	450 VAC
Maximum Current	180 A

Battery System

Battery Type	Lithium-ion
Voltage Range	350-450 VDC
Rated Voltage	400 VDC
Max Charge/Discharge Current	250 A

Grid-Connected Operation

Rated Power	100 kW (120 kW peak)
Rated Current	144 A (173 A max)
Voltage Range	300-460 V
Frequency Range	50-60 Hz
Power Factor	> 0.99 (range -1 to 1)
THD	< 3% at rated power

System Performance

Maximum Efficiency: 95%

Operating Temperature: -40°C to 60°C

Protection Rating: IP54

Maximum Altitude: 4,000 meters

Standby Consumption: < 50 W

Applications

This versatile converter serves as a comprehensive power management solution across multiple sectors:

Renewable Energy Systems: Integration of PMSG from wind/hydro turbines
Off-Grid & Backup Power: Remote locations, cabins, telecom stations
Grid-Interactive Systems: Grid-tied operations with battery charging
Industrial & Commercial: Stable power supply with remote monitoring
Specialized Control: Water gate motor control and STS integration

Customization Options

Greef Energy offers customizable grid-tied controller solutions with flexible configuration options:

Our AC PCS model features CE certification, multiple communication interfaces (Ethernet, RS485, Wi-Fi), and intelligent air cooling. With a minimum order of 1 set and negotiable pricing, we provide tailored solutions for your specific project requirements.
